Multi-Function Control
Designed to control and limit travel, slewing and mechanical movement in lifting and industrial transmission equipment.
DXZ
DXZ Limit Switch

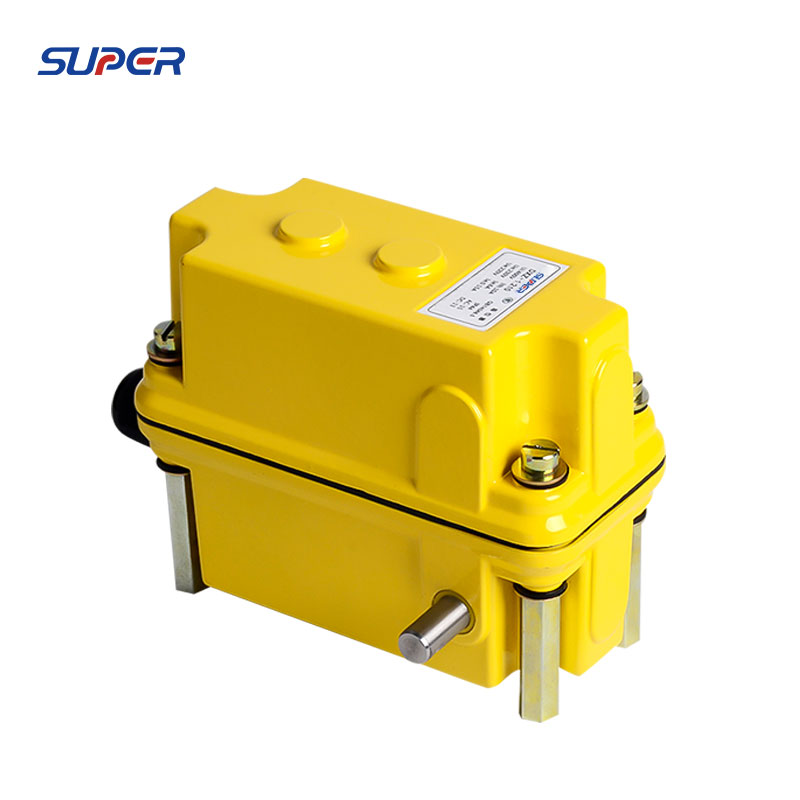

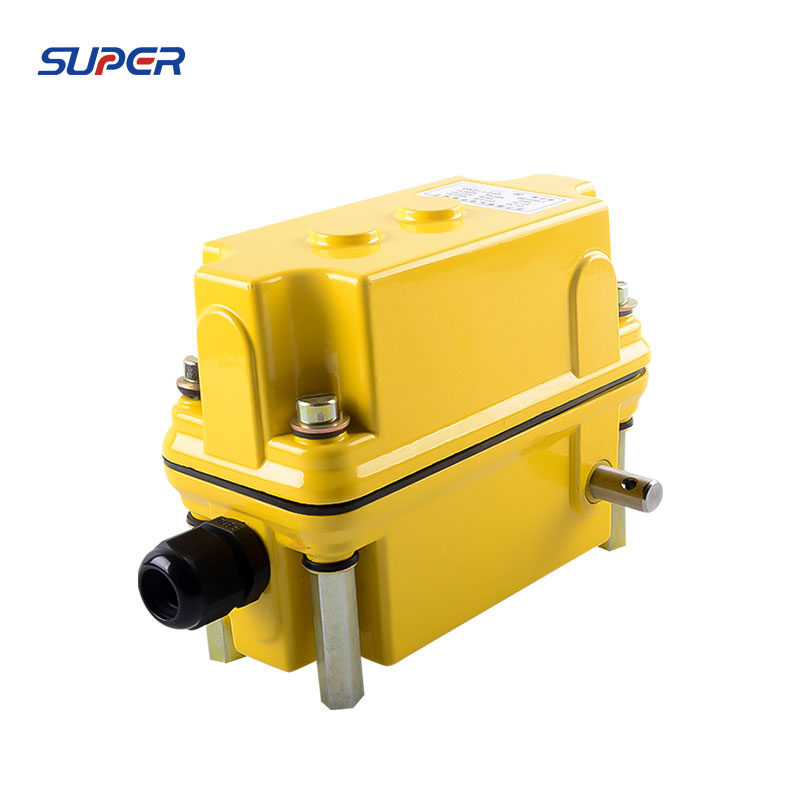

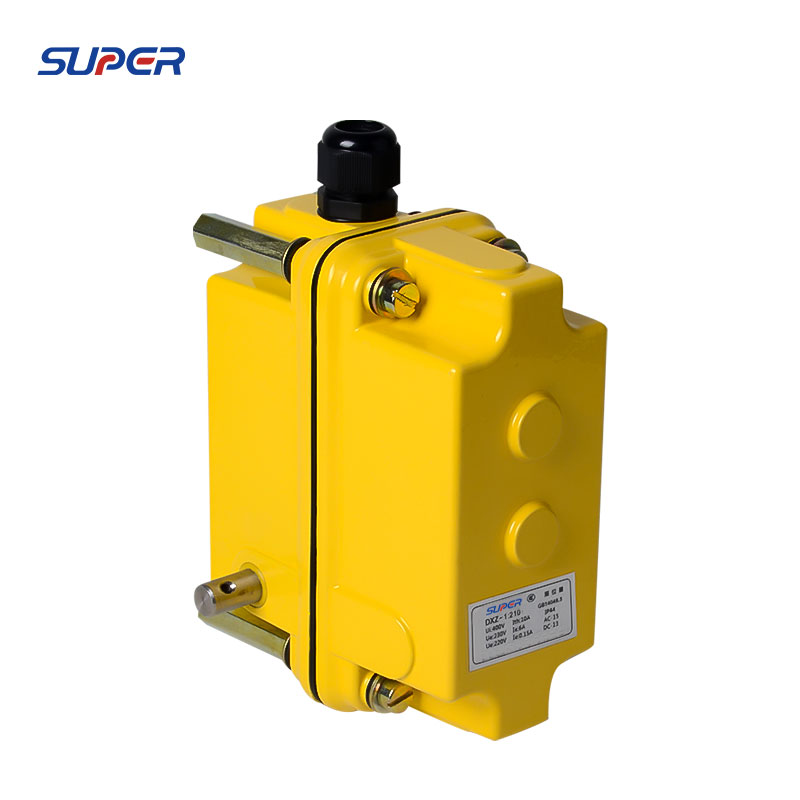

DXZ multifunction slewing limit switch with potentiometer, designed for travel and position control in cranes, lifting machinery and industrial transmission systems.
- Model
- DXZ 1:274
- Drive Ratio
- 1:274
- Rated Load
- 10A / 250VAC
- Operating Speed
- 1 mm–50 cm/s
Product Overview
The DXZ multifunction limit switch is designed for travel, slewing and position control in cranes, lifting machinery and industrial transmission equipment. It can be used to control and limit mechanical movement in multiple directions, making it suitable for construction, port, mining and material handling applications.
The DXZ series features a compact aluminum housing, adjustable limit positions and multiple control functions. This 1:274 version is equipped with a potentiometer and provides reliable position control for demanding lifting and industrial machinery applications.
Reliable Control
for a Safer Tomorrow
Model Selection Guide
Compare the available models and specifications to find a suitable configuration for your application.
How to choose a DXZ configuration
Start with the number of control loops required by your equipment. Then choose a drive ratio that matches the required travel or rotation range. If position feedback is needed, specify the optional potentiometer when requesting a quote. Use the configurations below for an initial comparison, and confirm the final model against your application requirements.
Why This Product
Adjustable Limit Position
Adjustable limit settings provide flexible position control for different crane and machinery configurations.
Industrial Durability
Aluminum housing with IP65 protection supports reliable operation in demanding industrial environments.
Technical Specifications
- Model
- DXZ 1:274
- Drive Ratio
- 1:274
- Rated Load
- 10A / 250VAC
- Operating Speed
- 1 mm–50 cm/s
- Operating Frequency
- Mechanical: 120 times/min; Electrical: 30 times/min
- Insulation Resistance
- ≥100 MΩ at DC 500V
- Protection Degree
- IP65
- Operating Temperature
- -40°C to +55°C
- Operating Humidity
- ≤90% RH
- Housing Material
- Aluminum
- Electrical Life
- ≥100,000 operations
- Mechanical Life
- ≥1,000,000 operations
Applications
Widely used in lifting and material handling equipment.
Tower Cranes
Position and travel control for tower crane mechanisms.
Electric Hoists
Reliable limit control for electric hoisting equipment.
Industrial Lifting
Suitable for various industrial lifting machinery.
Material Handling
Used in material handling systems and other industrial equipment.
Product Details
Explore the features and technical details behind this product.
Construction detail
Inside the assembly

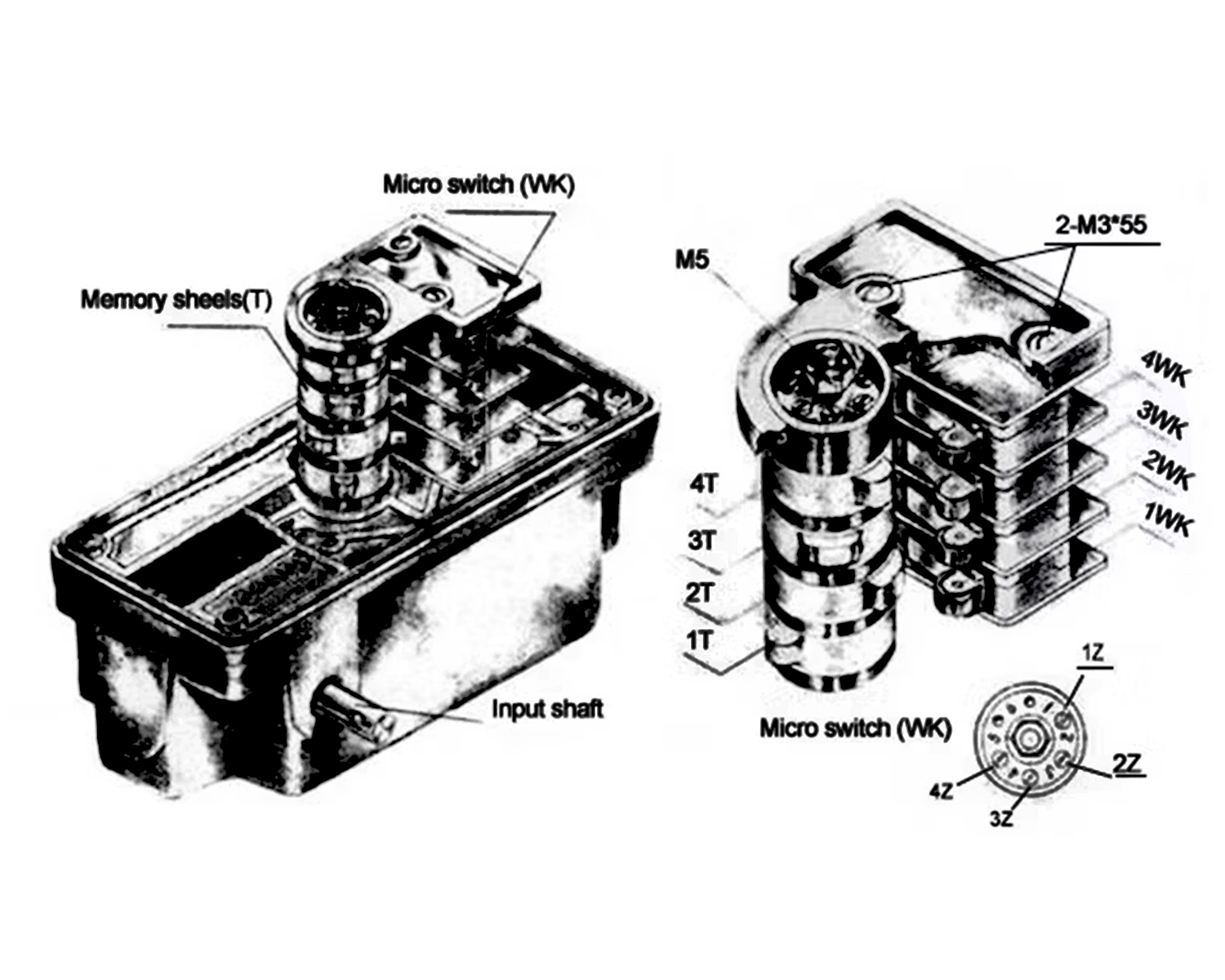

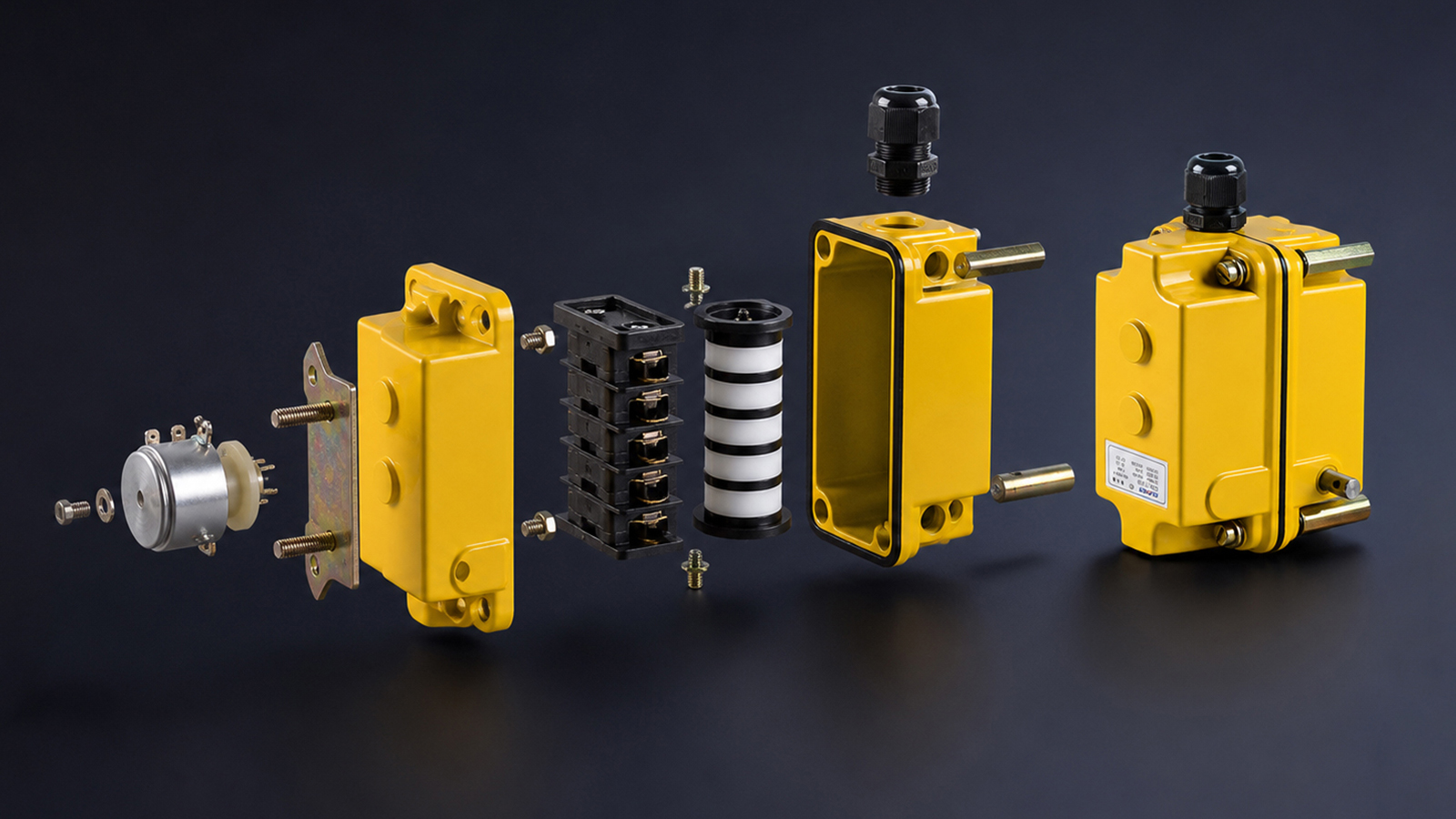

This exploded view separates the housing, contact stack and internal components, making the construction easier to inspect.
Product feature
Potentiometer feedback

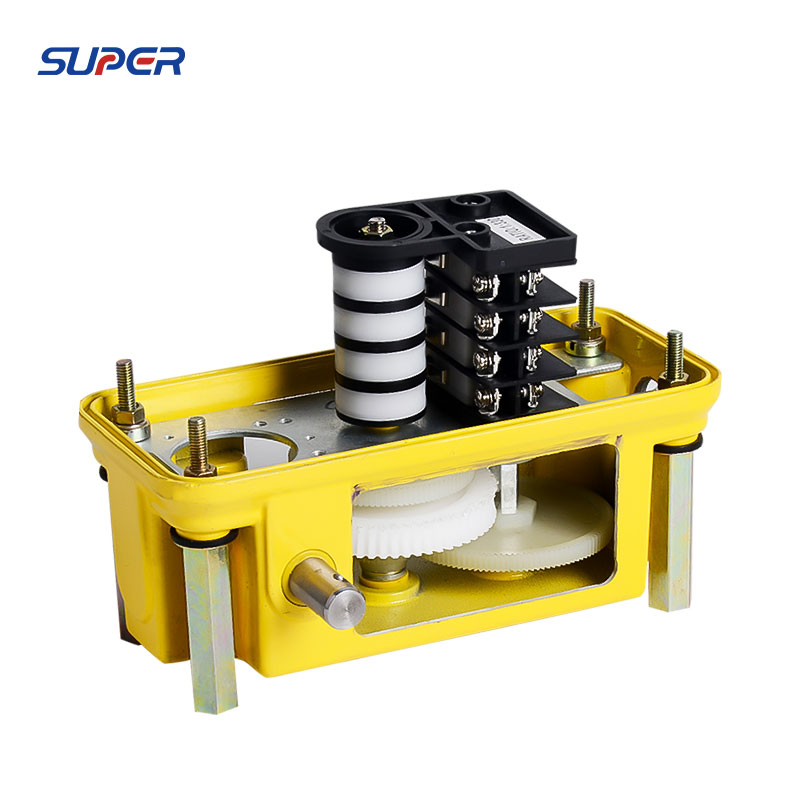

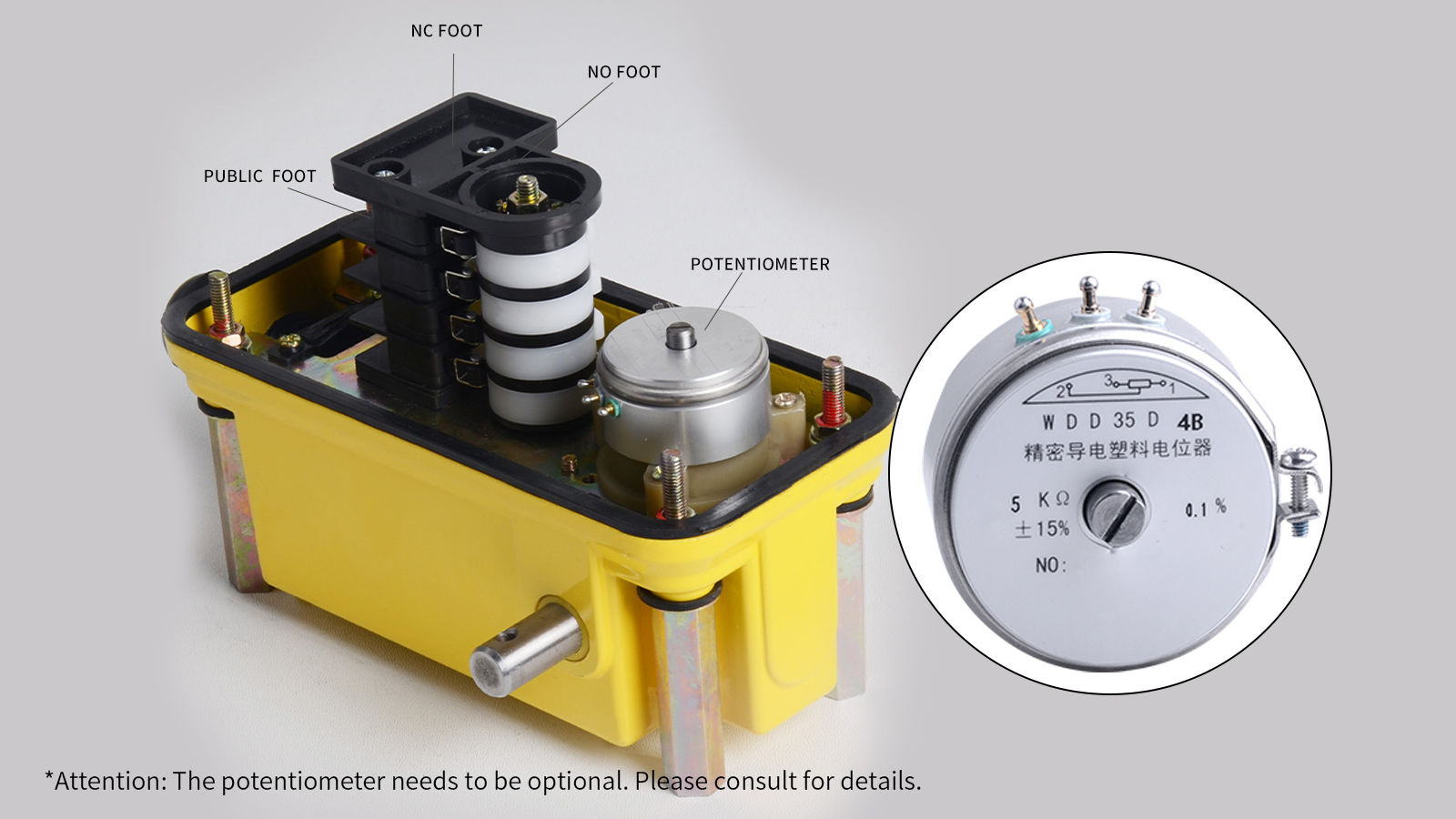

The illustrated DXZ unit shows a potentiometer for position feedback. This component is optional; specify your feedback requirement when selecting a configuration.
Packaging reference
Product presentation

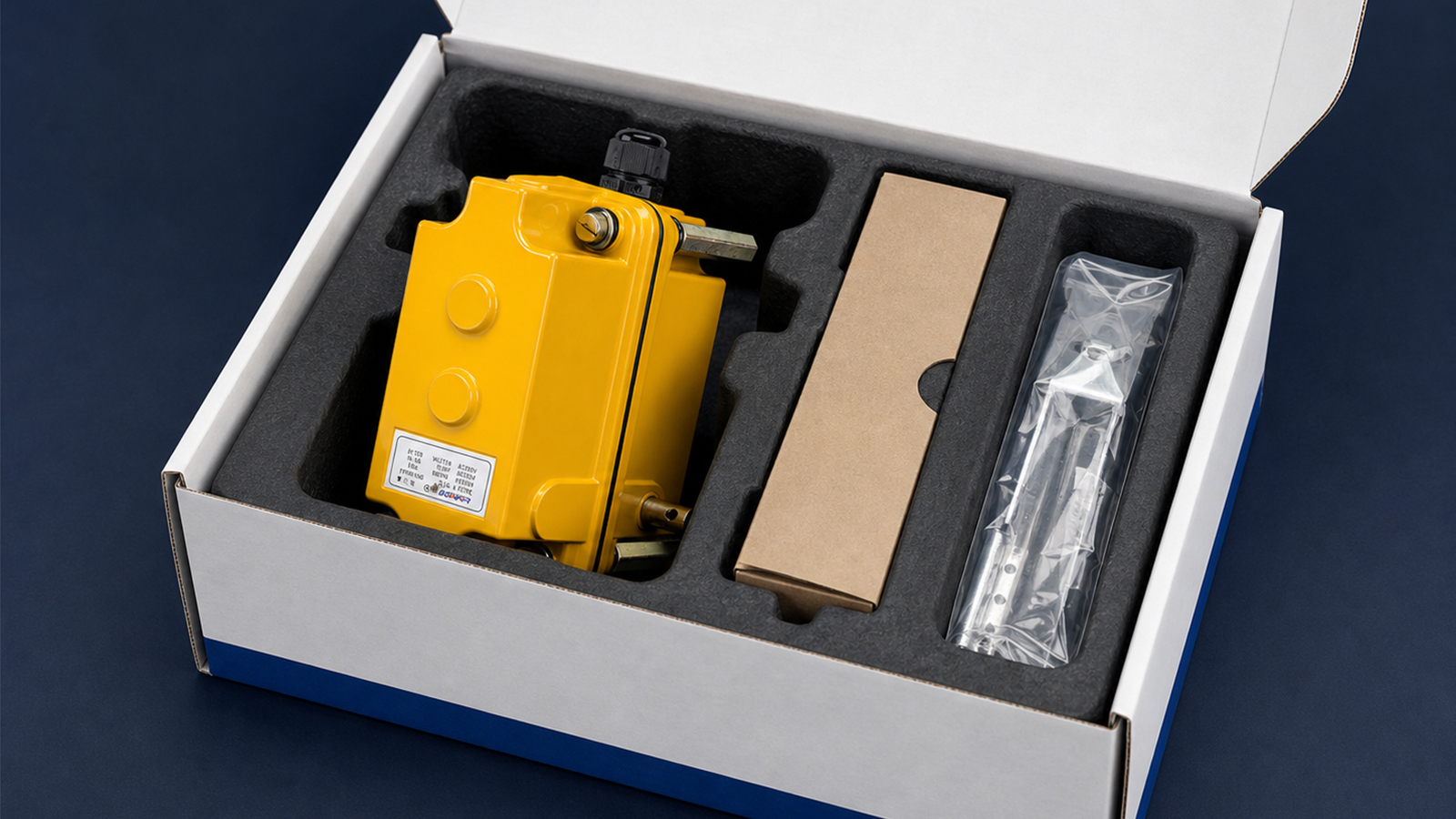

This reference image shows the unit and accessories arranged in protective packaging. Confirm the included items and final packing method for your order.
Dimensions & Mounting
Technical reference
Check the mounting envelope

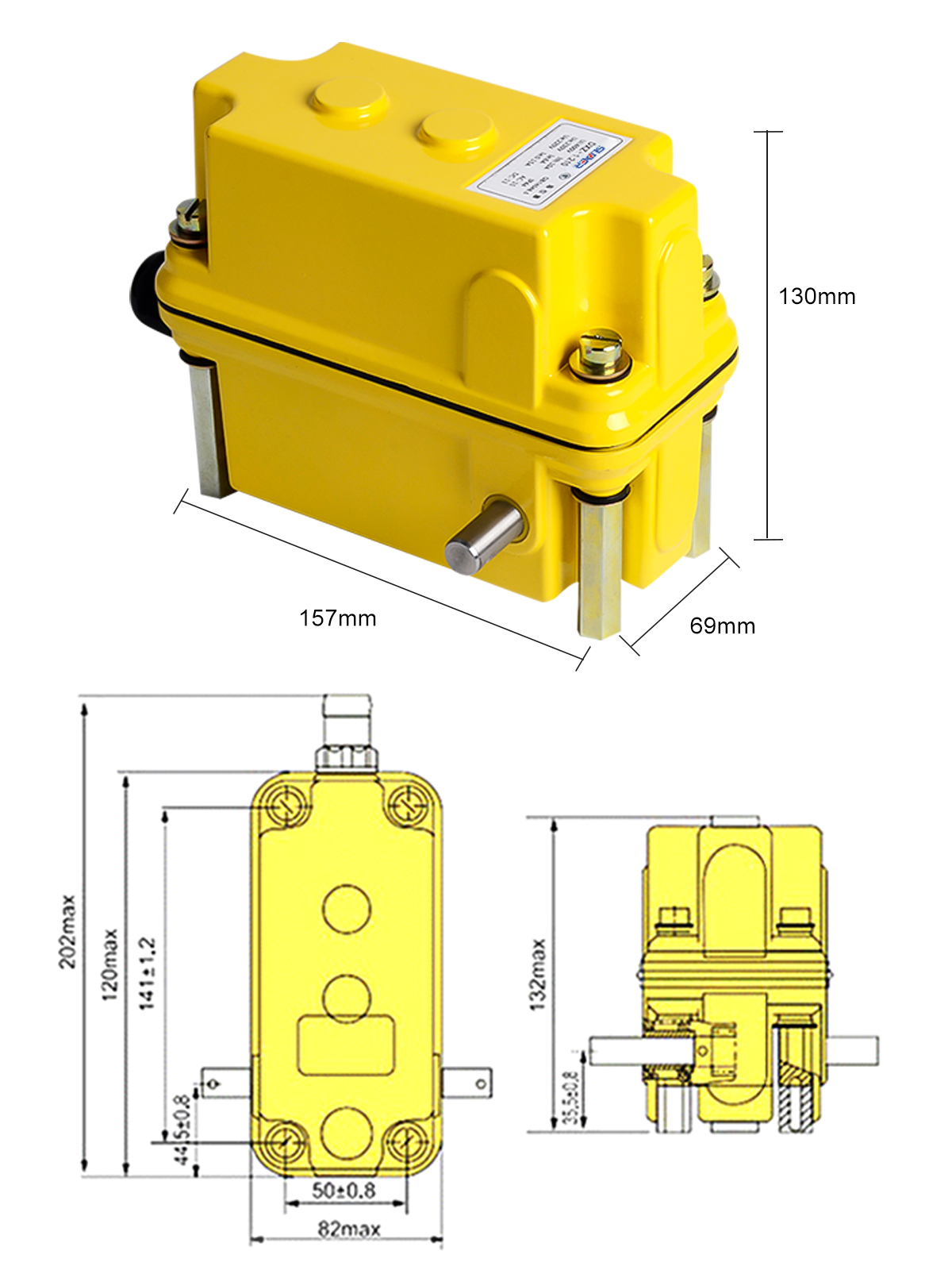

Use this drawing to compare the available mounting space and connection points. Confirm the approved dimensions for the exact model before installation.
Our Commitment
Product ExpertisePractical support for industrial product selection.
Engineering SupportClear technical guidance for your application.
Quality FocusReliable documentation and responsive service.
Certifications
Downloads
Frequently Asked Questions
Answers to the details buyers check before choosing a configuration.
How do I choose the correct DXZ drive ratio?
Compare the equipment travel or rotation range with the available ratios, then confirm the final model against the required switching points.
Does every DXZ model include a potentiometer?
No. The potentiometer is an optional configuration. Tell us whether position feedback is required so we can confirm the corresponding model.
Where can I check mounting dimensions?
Use the drawing in the Dimensions & Mounting section for an initial fit check. Request the approved drawing for your exact model before installation.
Need technical details or pricing?
Contact our team for professional support and a tailored solution.
